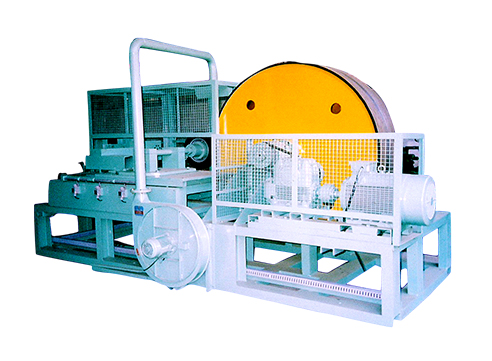

The Tyre Rim Test Machine – Radial Fatigue is designed to evaluate the endurance and structural integrity of vehicle rims under repeated radial loads. It simulates real-world road conditions, such as bumps, potholes, and sustained vertical forces, to test rim fatigue, deformation, and failure thresholds. The machine features a robust test frame, precision-controlled radial loading, and adjustable parameters for different rim sizes. With integrated PLC-HMI controls, it enables automated testing cycles, real-time monitoring, and comprehensive data logging for performance analysis, product validation, and quality assurance.
Simulates repeated vertical loads to evaluate rim fatigue resistance accurately.
Supports multiple rim diameters and configurable radial load conditions.
PLC-HMI system allows easy operation, monitoring, and automated data logging.
| Parameter | Specification |
|---|---|
| Max Rim Diameter | 22–28 inches (Customizable) |
| Max Radial Load | 10 kN |
| Load Cycles | Up to 1 Million Cycles |
| Control System | PLC with HMI |
| Data Logging | Real-time monitoring and automated reports |
| Power Requirement | 3 Phase, 7.5 kW |
