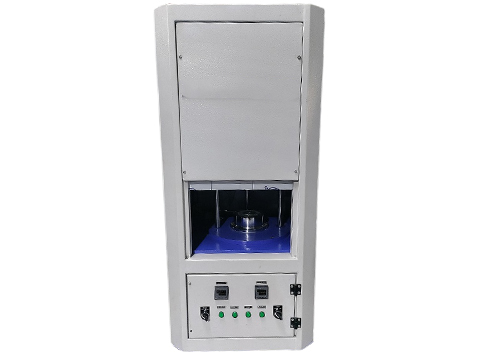

Our Moving Die Rheometer (MDR) is designed for precise measurement of the curing characteristics and rheological behavior of rubber compounds under controlled conditions. Unlike traditional rheometers, the MDR uses a sealed test cavity with a moving die, eliminating slippage and ensuring highly accurate torque measurement. It provides critical parameters such as scorch time, optimum cure time, cure rate, and modulus development. Widely used in rubber processing, automotive, and polymer industries, the MDR ensures consistent and repeatable results for quality control, research, and product development. The PLC-based control system with HMI enables intuitive operation, real-time monitoring, and data logging for detailed analysis.
Sealed cavity design ensures precise and repeatable torque measurement.
Delivers stable curing data for quality control and R&D applications.
PLC with HMI provides easy operation, monitoring, and data logging.
| Parameter | Specification |
|---|---|
| Oscillation Angle | ±0.5° |
| Temperature Range | Up to 200°C |
| Torque Range | 0–50 dN·m |
| Test Time | Up to 120 minutes |
| Control System | PLC with HMI |
| Power Requirement | Single / Three Phase, 2 kW |
